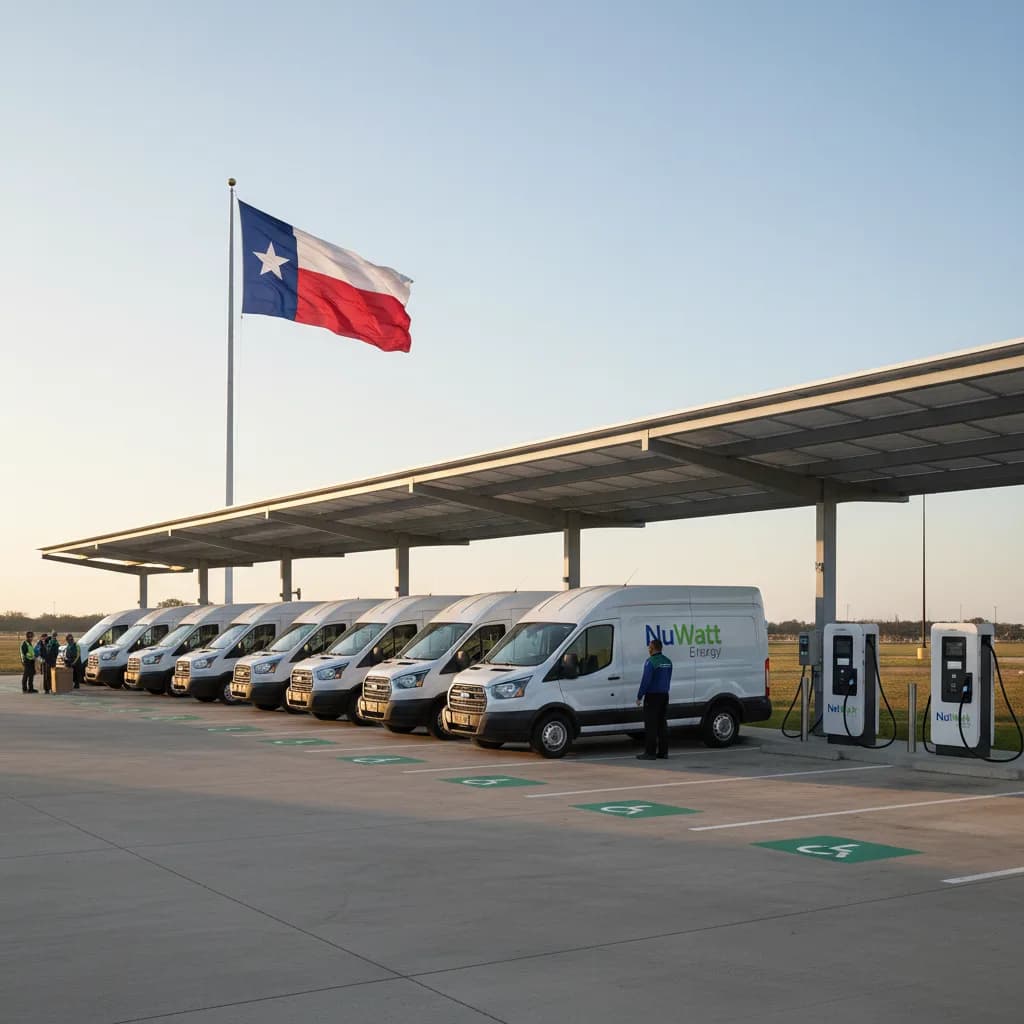

A light-duty fleet depot in ERCOT territory combines a 120 kW solar canopy, 10 overnight Level 2 ports, two DCFC dispensers, and 200 kWh of storage.
Segment
Fleet depot
State
Texas (ERCOT)
Ports
10 L2 + 2 DCFC
Net cost
~$340,000
Illustrative example. This sample project shows representative numbers based on NuWatt benchmark data and 2026 incentive programs. Your actual project depends on site conditions and incentive availability at the time of install.
Gross roughly $600,000 for a 120 kW solar canopy, 10 overnight L2 ports, two DCFC dispensers, and 200 kWh of battery storage. The Section 30C credit on chargers ($90,000), Section 48E ITC on the canopy ($90,000), and a TCEQ All-Electric rebate (~$80,000) bring the net to around $340,000 on an eight-month build.
Total ports
10 L2 + 2 DCFC
Gross project cost
~$600,000
Net after incentives
~$340,000
Timeline
8 months
Two federal credits run in parallel on two property classes. TCEQ All-Electric adds state-level cash tied to the replacement vehicles.
Gross components
120 kW canopy $300K · 10 L2 $140K · 2 DCFC $160K · 200 kWh battery $80K
~$600,000
− Section 30C on chargers (PWA)
30% × ($140K L2 + $160K DCFC) under $100K per-port cap
−$90,000
− Section 48E on solar canopy
30% × $300,000 canopy capital
−$90,000
− TCEQ All-Electric rebate
Tied to replacement trucks, FCFS to Aug 31, 2026
−$80,000
= Net out-of-pocket
Canopy, 10 L2 ports, 2 DCFC, 200 kWh battery — delivered
~$340,000
Texas demand-charge note: The 200 kWh battery is a capital line, but it pays itself back through demand-charge mitigation on the daytime DCFC sessions. On an ERCOT tariff with a $20/kW demand charge, shaving 30 kW of peak is ~$7,200/year before even counting solar offset.
Overnight L2 carries the base load; two DCFC dispensers handle midday swing routes and emergency top-ups.
48 A overnight L2, Power Boost load share
30–80 A, industrial-grade, OCPP
150–180 kW DCFC, liquid-cooled CCS1, power-share modular
Load study, solar canopy structural pre-check, ERCOT interconnection path.
Civil, electrical, structural; TCEQ All-Electric application filed.
Oncor or CenterPoint service upgrade; interconnection study for canopy.
City permit, steel order for canopy, DCFC and battery lead time.
Footings, steel, PV modules, DC wiring.
10 L2 + 2 DCFC + 200 kWh battery, conduit, switchgear.
Utility witness test, demand-charge dashboard live, driver training.
We size the canopy, model the demand-charge impact, and line up TCEQ and interconnection in parallel. First call walks the depot and sizes the service.
Get a fleet + canopy quoteFleets have big, flat parking lots and a predictable overnight load. A solar canopy turns that lot into a generation asset, qualifies for the Section 48E commercial solar ITC on the canopy portion, and shades vehicles from Texas heat. When paired with storage, it also smooths the demand-charge spike from daytime DCFC sessions.
Feasibility call covers canopy sizing, ERCOT interconnection, and a defensible TCEQ application.
Last verified by NuWatt Incentive PM on 2026-04-14. Numbers are illustrative — actual incentives depend on ERCOT service area, TCEQ funding remaining, canopy structural scope, and 30C tract eligibility.
